Extension BOLT XX: Simple Taproot Channels

Authors: * Olaoluwa Osuntokun * Eugene Siegel

Created: 2022-04-20

Table of Contents

Introduction

Abstract

The activation of the Taproot soft-fork suite enables a number of updates to the Lightning Network, allowing developers to improve the privacy, security, and flexibility of the system. This document specifies extensions to BOLTs 2, 3, and 5 which describe new, Taproot based channels to update to the Lightning Network to take advantage of some of these new capabilities. Namely, we mechanically translate the current funding and commitment design to utilize musig2 and the new tapscript tree capabilities.

Motivation

The activation of Taproot grants protocol developers with a number of new tools including: schnorr, musig2, scriptless scripts, PTLCs, merkalized script trees and more. While it’s technically possible to craft a single update to the Lightning Network to take advantage of all these new capabilities, we instead propose a step-wise update process, with each step layering on top of the prior with new capabilities. While the ultimate realization of a more advanced protocol may be delayed as a result of this approach, packing up smaller incremental updates will be easier to implement and review, and may also hasten the timeline to deploy initial taproot based channels.

In this document, we start by revising the most fundamental component of a Lightning Channel: the funding output. By first porting the funding output to Segwit V1 (P2TR) musig2 based output, we’re able to re-anchor all channels in the network with the help of dynamic commitments. Once those channels are re-anchored, dynamic commitments allows developers to ship incremental changes to the commitment transaction, HTLC structure, and overall channel structure – all without additional on-chain transactions.

By restricting the surface area of the initial update, we aim to expedite the initial roll-out while also providing a solid base for future updates without blocking off any interesting design paths. Implementing and shipping a constrained update also gives implementers an opportunity to get more familiar with the new tooling and capabilities, before tackling more advanced protocol designs.

Preliminaries

In this section we lay out some preliminary concepts, protocol flows, and notation that’ll be used later in the core channel specification.

Pay-To-Taproot-Outputs

The Taproot soft fork package (BIPs 340, 341, and 342) introduced a new Segwit witness version: v1. This new witness version utilizes a new standardized public key script template:

OP_1 <taproot_output_key>

The taproot_output_key is a 32-byte x-only secp256k1 public key, with all digital signatures based off of the schnorr signature scheme described in BIP 340.

A taproot_output_key commits to an internal key, and optional script root via the following mapping:

taproot_output_key = taproot_internal_key + tagged_hash("TapTweak", taproot_internal_key || script_root)*G

It’s important to note that while taproot_output_key is serialized as a 32-byte public key, in order to properly spend the script path, the parity (even or odd) of the output public key must be remembered.

The taproot_internal_key is also a BIP 340 public key, ideally derived anew for each output. The tagged_hash scheme is described in BIP 340, we briefly define the function as:

tagged_hash(tag, msg) = SHA256(SHA256(tag) || SHA256(tag) || msg)
Tapscript Tree Semantics

The script_root is the root of a Tapscript tree as defined in BIP 341. A tree is composed of tap_leaves and tap_branches.

A tap_leaf is a two tuple of (leaf_version, leaf_script). A tap_leaf is serialized as:

leaf_version || compact_size_of(leaf_script) || leaf_script

where compact_size_of is the variable length integer used in the Bitcoin P2P protocol.

The digest of a tap_leaf is computed as:

tagged_hash("TapLeaf", leaf_encoding)

where leaf_encoding is serialized as:

leaf_version || compact_size_of(leaf_script) || leaf_script

A tap_branch can commit to either a tap_leaf or tap_branch. Before hashing, a tap_branch sorts the two tap_node arguments based on lexicographical ordering:

tagged_hash("TapBranch", sort(node_1, node_2))

A tapscript tree is constructed by hashing each pair of leaves into a tap_branch, then combining these branches with each other until only a single hash remains. There’re no strict requirements at the consensus level for tree construction, allowing systems to “weight” the tree by placing items that occur more often at the top of the tree. A simple algorithm that attempts to produce a balanced script tree can be found here.

BIP 86

A taproot_output_key doesn’t necessarily need to commit to a script_root, unless the script_root is being revealed, a normal key (skipping the tweaking operation) can be used. In many cases it’s also nice to prove to a 3rd party that the output can only be spent with a top-level signature and not also a script path.

BIP 86 defines a taproot output key derivation scheme, wherein only the internal key is committed to without a script root:

taproot_output_key = taproot_internal_key + tagged_hash("TapTweak", taproot_internal_key)*G

We use BIP 86 whenever we want to ensure that a script path spend isn’t possible, and an output can only be spent via a key path.

We recommend that in any instances where a normal unencumbered output is used (cooperative closures, etc) BIP 86 is used as well.

Taproot Key Path Spends

A taproot key path spend a transaction to spend a taproot output without revealing the script root, which may or may not exist.

The witness of a keypath spend is simply a 64 or 65 byte schnorr signature. A signature is 64 bytes if the new SIGHASH_DEFAULT alias for SIGHASH_ALL is being used. Otherwise a single byte for the sighash type is used as normal:

<key_path_sig>

If an output commits to a script root (or uses BIP 86), a private key will need to be tweaked in order to generate a valid signature, and negated if the resulting output key has an odd y coordinate (see BIP 341 for details).

For any revocation path based on a key spend (the HTLC revocation paths), the tap tweak value MUST be known in order to spend the out unilaterally. As a result, it’s recommend that for a given revoked state, the tap tweak value is also stored.

Taproot Script Path Spends

A script path spend is executed when a tapscript leaf is revealed. A script path spends has three components: a control block, the script leaf being revealed, and the valid witness.

A control block has the following serialization:

(output_key_y_parity | leaf_version) || internal_key || inclusion_proof

The first segment uses a spare bit of the leaf_version to encode the parity of the output key, which is checked during control block verification. The internal_key is just that. The inclusion_proof is the series of sibling hashes in the path from the revealed leaf all the way up to the root of the tree. In practice, if one hashes the revealed leaf, and each 32-byte hash of the inclusion proof together, they’ll reach the script root if the proof was valid.

If only a single leaf is committed to in a tree, then the inclusion_proof will be absent.

The final witness stack to spend a script path output is:

<witness1> ... <witnessN> <leaf_script> <control_block>

Note that whenever a script path spend is required, in order to ensure an output is unilaterally spendable by a party, the finalized control block MUST either be stored as is, or the components needed to reconstruct the control block are persisted.

SIGHASH_ALL vs SIGHASH_DEFAULT

Where ever applicable, signers SHOULD use the SIGHASH_DEFAULT sighash over SIGHASH_ALL. When using taproot semantics, both algorithm refer to the very same digest, but SIGHASH_DEFAULT allows us to save a byte for any signature, as omitting the explicit sighash byte denotes that the default signing algorithm was used.

MuSig2 & Associated Changes

Musig2 is a multi-signature scheme based on schnorr signatures. It allows N parties to construct an aggregated public key, and then generate a single multi-signature that can only be generated with all the parties of the aggregated key. In practice, we use this to allow the funding output of channel to look just like any other P2TR output.

A musig2 signing flow has 4 stages:

  1. First, each party generates a public nonce, and exchanges it with every other party.

  2. Next, public keys are exchanged by each party, and combined into a single aggregated public key.

  3. Next, each party generates a partial signature and exchanges it with every other party.

  4. Finally, once all partial signatures are known, they can be combined into a valid schnorr Signature, which can be verified using BIP 340.

Steps 1&2 may be performed out of order, or concurrently. In our case only two parties exist, so as soon as one party knows both partial signatures, they can be combined into a final signature.

Thought this document musig2 refers to the finalized (v1.0.0) [BIP-0327](https://github.com/bitcoin/bips/blob/master/bip-0327.mediawiki specification.

Key Aggregation

We refer to the algorithm of KeyAgg algorithm bip-musig2 v1.0.0 for key aggregation. In order to avoid sending extra ordering information, we always assume that both keys are sorted first with the KeySort algorithm before aggregating (KeyAgg(KeySort(p1, p2))).

Nonce Generation

A musig2 secret nonce is the concatenation of two random, 32-byte integers.

A musig2 public nonce is technically the concatenation of two public keys, each representing the EC-point corresponding to its secret integer, thus resulting in a 66-byte value:

point_1 || point_2

For nonce generation, we refer to the NonceGen algorithm defined in the musig2 BIP. We only specify the set of required arguments, though a signer can also opt to specify the additional argument, in order to strengthen their nonce.

Counter Based Nonce Generation & JIT Nonce Strengthening

Each new commitment state requires fresh nonces from both parties, as each commitment state is signed using a fresh musig2 session. Nonces sent by either party in the commitment_signed message can be generated Just-In-Time (JIT), thus requiring no additional state. These nonces can also be further strengthened by mixing in the commitment sighash information into the nonce generation algorithm.

Upon channel creation, and subsequent re-establishment, a fresh set of verification nonces are exchanged by each party. This is the nonce the party will use to verify a new incoming commitment state sent by the remote party. In order to force close a channel, the holder of a verification nonce must use that same nonce to counter sign the commitment transaction with the other half of the musig2 partial signature. Rather than force an implementation to retain additional signing state (the verification nonce) to avoid holding a “hot” (fully broadcast able) commitment on disk, we instead recommend a counter based approach.

In this scenario are nonce generated via a counter is deemed to be safe as:

  1. Each commitment state only has a single signature exchanged to counter sign the commitment transaction.

  2. Each commitment state has a unique number which is currently encoded as a 48-bit integer across the sequence and lock time of the commitment transaction.

  3. The shachain scheme is used today to generate a fresh nonce-like value for the revocation scheme of today’s penalty based channels.

  4. A verification nonce is only used to sign a local party’s commitment transaction when they go to broadcast a force close transaction.

  5. The remote party never sees the unaggregated partial signature the local party will use to broadcast, only the aggregated signature is seen on chain.

  6. As a result of all the above, a verification nonce will never be used to sign the exact same commitment transaction, thereby avoiding nonce reuse.

As a result, we recommend the following counter based scheme to generate verification nonce. With this scheme, signing can remain stateless, as given the commitment height/number of the state to sign, and the original shachain root, the verification nonce sent by that state can be deterministically reproduced:

  1. Given the shachain root used to generate revocation pre-images, shachain_root, derive the sha256 hash of this value as: shachain_root_hash = sha256(shachain_root).

  2. Derive a new shachain root to be used to generate musig2 secret nonces via a HMAC invocation as: musig2_shachain_root = hmac(msg, shachain_root_hash), where msg is any string that can serve to uniquely bind the produced secret to this dedicated context. A recommended value is the ASCII string taproot-rev-root concatenated with the funding_txid (which allows deriving distinct deterministic shachains when splicing).

  3. Given a commitment height/number (N), the verification nonce to send to the remote party party can be derived by obtaining the Nth shachain leaf preimage k_i. The verification nonce to be derived by calling the musig2.NonceGen algorithm with the required values, and the rand' value set to k_i.

Nonce Handling

For commitment transactions, Due to the asymmetric state of the current revocation channels, two sets of public nonces need to be exchanged by each party: one for the local commitment, and one for the remote commitment.

The nonce for the local commitment MUST be sent a priori, thus enabling the counterparty to create a valid partial signature.

The nonce for the remote commitment could be sent a priori, too, but for the purposes of simplicity and disambiguation, MUST be sent alongside the partial signature. To that end, we will create a new data type that will be reused in multiple TLV extensions described further down in this document.

The exception to this is the co-op close flow: as there’s only a single message to sign, we only require a single pair of nonces. These nonces can also be sent right as the co-op flow begins.

Note that if nonces for commitment updates are not generated using the counter based scheme described above, then the nonces MUST be persisted to disk. As a result, in order to minimize additional signing state, it is recommended that the shachain counter nonce scheme is used.

Nonce Terminology

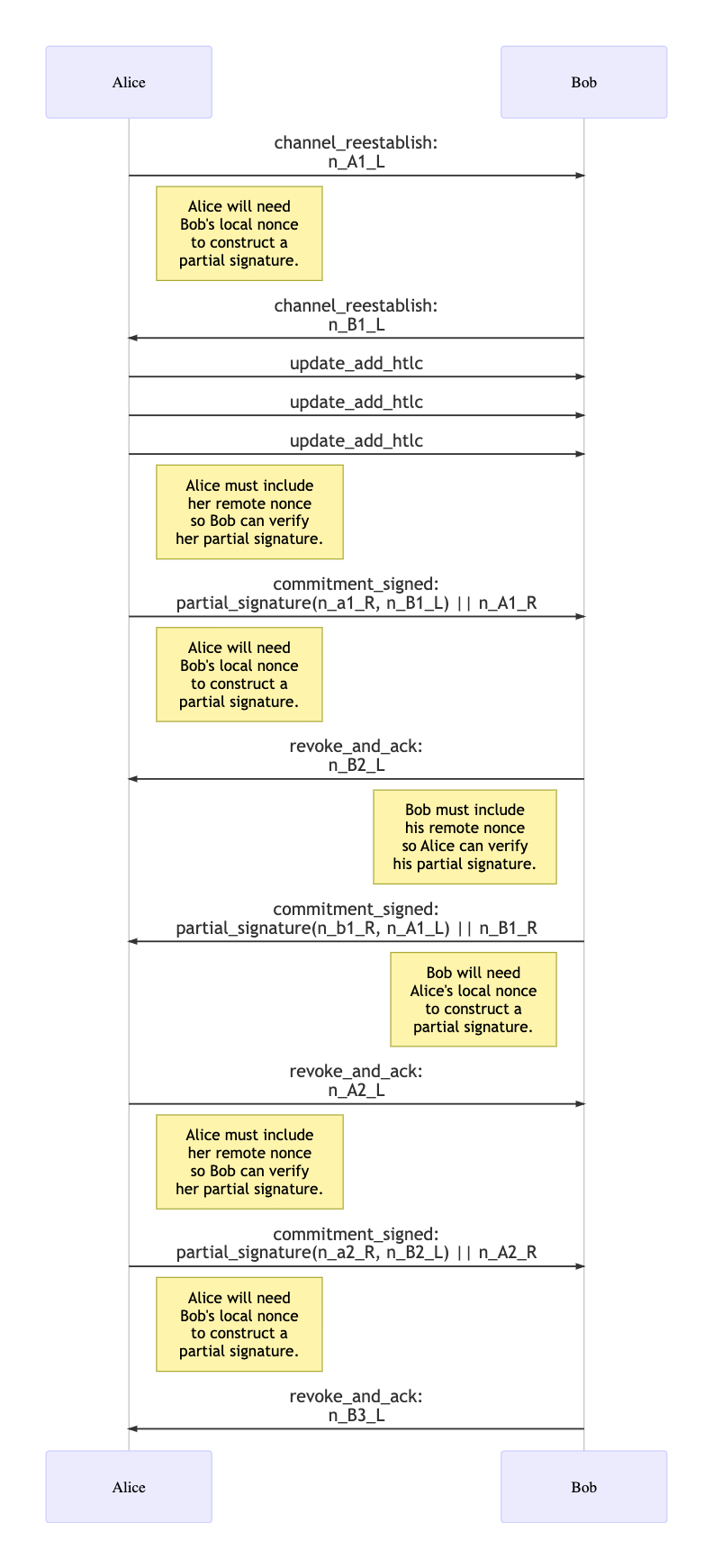

At all times, there exist two nonces associated with a given commitment state: the signing nonce, and the verification nonce.

A peer’s signing nonce is used to generate new commitments for the remote party. Each time a party signs a commitment, they send another signing nonce to the remote party.

A peer’s verification nonce is used to verify incoming commitments sent by the remote party. Once a peer verifies and revoke a new commitment, another verification nonce is sent to the remote party.

Both sides will maintain a musig2 sessions for their local commitment and the commitment of the remote party. A peer’s local commitment uses their verification nonce, and the signing nonce of the remote party. The remote commitment of the channel peer uses the peer’s signing nonce, and their verification nonce.

In order to sign and broadcast a new commitment to force close a channel, a peer uses their verification nonce to generate their final signature.

Signing

Once public nonces have been exchanged, the NonceAgg algorithm is used to combine the public nonces into the aggregate nonce which will be a part of the final signature.

The Sign method is used to generate a valid partial signature, with the PartialSigVerify algorithm used to verify each signature.

Once all partial signatures are known, the PartialSigAgg algorithm is used to aggregate the partial signature into a final, valid BIP 340 Schnorr signature.

Partial Signature Encoding

A standard musig2 partial signature is simply the encoding of the s value, which is a 32-byte-element modulo the order of the group.

Throughout this specification, we will be using a custom type, PartialSignatureWithNonce, comprised of the aforementioned s value, along with the 66-byte-encoding of the public nonce used to sign remote commitments:

s || point_1 || point_2

Nothing Up My Sleeves Points

Whenever we want to ensure that a given P2TR can only be spent via a script path, we utilize a Nothing Up My Sleeve (NUMS) point. A NUMS point is an EC point that no one knows the private key to. If no one knows the private key, then it can’t be used for key path signing, forcing the script path to always be taken.

We refer to the simple_taproot_nums as the following value:

02dca094751109d0bd055d03565874e8276dd53e926b44e3bd1bb6bf4bc130a279

The value was generated using this tool, with the seed phrase “Lightning Simple Taproot”.

Design Overview

With the preliminaries out of the way, we provide a brief overview of the Simple Taproot Channel design.

The multisig output becomes a single P2TR key, with musig2 key aggregation used to combine two keys into one.

For commitment transactions, we inherit the anchor output semantics, meaning there are two outputs used for CPFP, with all other scripts inheriting a 1 CSV restriction.

The local output of the commitment transaction uses a script-path based revocation scheme in order to ensure that the information needed by 3rd parties to sweep the anchor outputs is always revealed on chain.

The remote output of the commitment transaction uses the combined_funding_key as the top-level internal key, and then commits to a normal remote script.

Anchor outputs use the local_delayedpubkey and the remotepubkey of both parties as the top-level internal key committing to the script 16 CSV. Unless active HTLCs exist on the commitment transaction, if a local or remote output is missing from the commitment, its corresponding anchor must not be present, either.

All HTLC scripts use the revocation key as the top-level internal key. This allows the revocation to be executed without additional on-chain bytes, and also reduces the amount of state that nodes need to keep in order to properly handle channel breaches.

Specification

Feature Bits

Inheriting the structure put forth in BOLT 9, we define a new feature bit to be placed in the init message, and the node_announcement message.

Bits Name Description Context Dependencies Link
80/81 option_simple_taproot Node supports simple taproot channels IN option_channel_type, option_simple_close TODO(roasbeef): link
180/181 option_simple_taproot_staging Node supports simple taproot channels IN option_channel_type TODO(roasbeef): link

Note that we allocate two pairs of feature bits: one the final version of this protocol proposal, and the higher bits (+100) for preliminary experimental deployments before this protocol extension has been finalized. This +100 feature bit is thus refereed to as the staging feature bit.

The Context column decodes as follows: * I: presented in the init message. * N: presented in the node_announcement messages * C: presented in the channel_announcement message. * C-: presented in the channel_announcement message, but always odd (optional). * C+: presented in the channel_announcement message, but always even (required). * 9: presented in BOLT 11 invoices.

The option_simple_taproot feature bit also becomes a defined channel type feature bit for explicit channel negotiation.

It’s important to note that given the early version of this channel type cannot be announced on the public network (gossip protocol changes are required), the taproot channels type cannot be used as an interchangeable default channel type. As a result, this channel type SHOULD only be used with explicit channel negotiation. Otherwise, two parties that advertise the feature bit would not be able to open publicly advertised channels.

Throughout this document, we assume that option_simple_taproot was negotiated, and also the option_simple_taproot channel type is used.

New TLV Types

Note that these TLV types exist across different messages, but their type IDs are always the same.

partial_signature_with_nonce
next_local_nonce
partial_signature
shutdown_nonce
next_local_nonces

where nonce_entry is: * [32*byte: funding_txid] * [66*byte: public_nonce]

Channel Funding

n_a_L: Alice’s local secret nonce

n_B_R: Bob’s remote public nonce

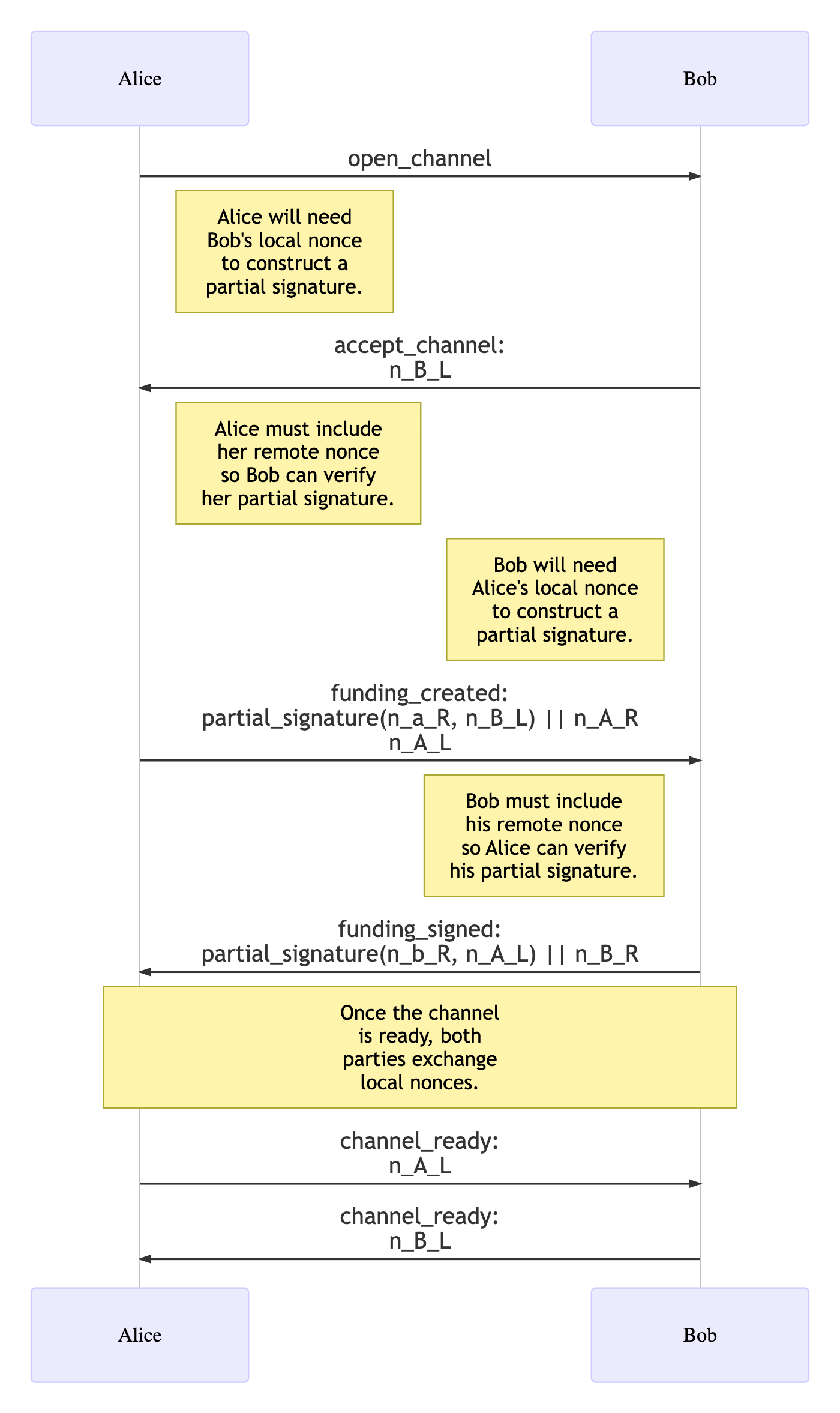

The open_channel and accept_channel messages are extended to specify a new TLV type that houses the musig2 public nonces.

We add option_simple_taproot to the set of defined channel types.

open_channel Extensions
  1. tlv_stream: open_channel_tlvs
  2. types:
    1. type: 4 (next_local_nonce)
    2. data:
      • [66*byte:public_nonce]
Requirements

The sending node:

The receiving node MUST fail the channel if:

Rationale

For the initial Taproot channel type (option_simple_taproot), musig2 nonces must be exchanged in the first round trip (open->, <-accept). This is done to ensure to ensure that the initiator is able to generate a valid musig2 partial signature at the next step once the transaction to be signed is fully specified.

The next_local_nonce field will be used to verify incoming commitment signatures. Each incoming signature will carry the newly generated nonce used to sign the commitment transaction. At force close broadcast time, the verification nonce is then used to sign the local party’s commitment transaction.

accept_channel Extensions
  1. tlv_stream: accept_channel_tlvs
  2. types:
    1. type: 4 (next_local_nonce)
    2. data:
      • [66*byte:public_nonce]
Requirements

The sender:

The recipient:

funding_created Extensions
  1. tlv_stream: funding_created_tlvs
  2. types:
    1. type: 2 (partial_signature_with_nonce)
    2. data:
      • [98*byte: partial_signature || public_nonce]
Requirements

The sender:

The recipient:

funding_signed Extensions
  1. tlv_stream: funding_signed_tlvs
  2. types:
    1. type: 2 (partial_signature_with_nonce)
    2. data:
      • [98*byte: partial_signature || public_nonce]
Requirements

The sender:

The recipient:

channel_ready Extensions

We add a new TLV field to the channel_ready message:

  1. tlv_stream: channel_ready_tlvs
  2. types:
    1. type: 4 (next_local_nonce)
    2. data:
      • [66*byte: public_nonce]

Similar to the next_per_commitment_point, by sending the next_local_nonce value in this message, we ensure that the remote party has our public nonce which is required to generate a new commitment signature.

Requirements

The sender:

The recipient:

RBF Cooperative Close

For simple taproot channels, the cooperative close protocol uses closing_complete and closing_sig messages (as specified in BOLT #2) with extensions for MuSig2 signature generation and RBF (Replace-By-Fee) iterations.

shutdown Extensions

For taproot channels, the shutdown message includes a single nonce:

  1. type: 38 (shutdown)
  2. data:
    • …
    • [shutdown_tlvs:tlvs]
  3. tlv_stream: shutdown_tlvs
  4. types:
    1. type: 8 (shutdown_nonce)
    2. data:
      • [66*byte:public_nonce]

The shutdown_nonce represents the sender’s “closee nonce” - the nonce they will use when sending closing_sig messages.

Additional nonces are provided just-in-time (JIT) with signatures:

Requirements

For taproot channels:

A sending node: - MUST set the shutdown_nonce to a valid musig2 public nonce. - MUST use this nonce when sending closing_sig messages.

A receiving node: - MUST verify that the shutdown_nonce value is a valid musig2 public nonce. - MUST store this nonce for use when verifying the peer’s closing_sig messages.

JIT (Just-In-Time) Nonce Pattern

Final nonces are delivered just-in-time with signatures using an asymmetric pattern:

With this pattern, we exchange the set of closee_nonces up front in the shutdown message. When either party wants to initiate a new update, they send closing_complete which includes their JIT closer_nonce. Sending this signatures serves to consume the closee_nonce of the remote party, so then they respond with closing_sig, they include a new next_closee_nonce.

closing_complete Extensions

For taproot channels, the closing_complete message uses PartialSigWithNonce to support MuSig2 signatures with JIT nonce delivery:

  1. tlv_stream: closing_tlvs
  2. types:
    1. type: 5 (closer_no_closee)
    2. data:
      • [98*byte:partial_sig_with_nonce]
    3. type: 6 (no_closer_closee)
    4. data:
      • [98*byte:partial_sig_with_nonce]
    5. type: 7 (closer_and_closee)
    6. data:
      • [98*byte:partial_sig_with_nonce]

Note: The TLV type numbers (5, 6, 7) are different from the non-taproot types (1, 2, 3) to distinguish taproot signatures. Each partial_sig_with_nonce contains:

Requirements

The sender of closing_complete (aka. “the closer”):

The receiver of closing_complete (aka. “the closee”):

closing_sig Extensions

For taproot channels, the closing_sig message uses PartialSig with a separate next nonce field:

  1. tlv_stream: closing_tlvs
  2. types:
    1. type: 5 (closer_no_closee)
    2. data:
      • [32*byte:partial_sig]
    3. type: 6 (no_closer_closee)
    4. data:
      • [32*byte:partial_sig]
    5. type: 7 (closer_and_closee)
    6. data:
      • [32*byte:partial_sig]
    7. type: 22 (next_closee_nonce)
    8. data:
      • [66*byte:public_nonce]

Note: Unlike closing_complete, closing_sig separates the signature from the next nonce (which will be used for the next RBF attempt signature):

Requirements

The sender of closing_sig:

The receiver of closing_sig:

RBF Nonce Rotation Protocol

For taproot channels supporting RBF cooperative close, nonces are delivered just-in-time (JIT) with signatures using an asymmetric pattern:

  1. Initial Exchange: Nonces are exchanged in shutdown messages
    • Each party sends their “closee nonce” - the nonce they’ll use when signing as the closee
    • This nonce is used by the remote party when they act as closer
  2. RBF Iterations: Subsequent nonces are delivered with signatures
    • closing_complete (from closer): Uses PartialSigWithNonce (98 bytes)
      • Bundles the partial signature with the sender’s closer nonce
      • The bundling is necessary because the closee doesn’t know this nonce yet
    • closing_sig (from closee): Uses PartialSig (32 bytes) + NextCloseeNonce field
      • Separates the signature from the next closee nonce because this nonce is for the next RBF attempt, not the one currently being signed
  3. Asymmetric Roles:
    • Closer: The party sending closing_complete, proposing a new fee
    • Closee: The party sending closing_sig, accepting the fee proposal
    • Each party alternates between these roles during RBF iterations
Nonce State Management

With this JIT nonce approach for coop close, an implementation only needs to store (in memory) the current closee nonce for the remote and local party. When either side is ready to sign, it’ll generate a new closer nonce, and send that along with the sig.

Security Considerations

Channel Operation

n_a_L: Alice’s local secret nonce

n_B_R: Bob’s remote public nonce

commitment_signed Extensions

A new TLV stream is added to the commitment_signed message:

  1. tlv_stream: commitment_signed_tlvs
  2. types:
    1. type: 2 (partial_signature_with_nonce)
    2. data:
      • [98*byte: partial_signature || public_nonce]
Requirements

The sender:

The recipient:

revoke_and_ack Extensions

A new TLV stream is added to the revoke_and_ack message:

  1. tlv_stream: revoke_and_ack_tlvs
  2. types:
    1. type: 22 (next_local_nonces)
    2. data:
      • [...*nonce_entry: nonces]

Similar to sending the next_per_commitment_point, we also send the next musig2 nonces, after we revoke a state. Sending these nonces allows the remote party to propose another state transition as soon as the message is received.

Requirements

The sender:

The recipient:

Message Retransmission

channel_reestablish Extensions

We add a new TLV field to the channel_reestablish message:

  1. tlv_stream: channel_reestablish_tlvs
  2. types:
    1. type: 22 (next_local_nonces)
    2. data:
      • [...*nonce_entry: nonces]

Similar to the next_per_commitment_point, by sending the next_local_nonces value in this message, we ensure that the remote party has our public nonces, which are required to generate new commitment signatures.

Requirements

The sender:

The recipient:

A node:

Splice Coordination

Splicing allows parties to modify the funding output of an existing channel without closing it. During splice operations, multiple commitment transactions may exist concurrently, each requiring its own MuSig2 nonce coordination. The next_local_nonces field enables this coordination by mapping transaction IDs to their respective nonces.

Splice Nonce Management

During splice negotiation:

Requirements for Splice Coordination

When a splice is initiated:

When multiple splices are pending:

Backward Compatibility

Nodes that do not support splicing will simply use a nonce map with a single entry indexed by the commitment transaction’s funding_txid.

Funding Transactions

For our Simple Taproot Channels, musig2 is used to generate a single aggregated public key.

The resulting funding output script takes the form: OP_1 funding_key

where:

The funding key is derived via the recommendation in BIP 341 that states: “If the spending conditions do not require a script path, the output key should commit to an unspendable script path instead of having no script path. This can be achieved by computing the output key point as Q = P + int(hashTapTweak(bytes(P)))G”. We refer to BIP 86 for the specifics of this derivation.

By using the musig2 sorting routine, we inherit the lexicographical key ordering from the base segwit channels. Throughout the lifetime of a channel any keys aggregated via musig2 also are assumed to use the KeySort routine

Commitment Transactions

To Local Outputs

For the simple taproot commitment type, we use the same flow of revocation or delay, while re-using the NUMS point to ensure that the internal key is always revealed (script path always taken). This ensures that the anchor outputs can always be spent given chain revealed information. For the remote party, the remotepubkey will be revealed once the remote party sweeps. For the local party, we ensure that the local_delayedpubkey is revealed with an extra noop data push.

The new output has the following form:

The parity (even or odd) of the y-coordinate of the derived to_local_output_key MUST be known in order to derive a valid control block.

The tapscript_root routine constructs a valid taproot commitment according to BIP 341+342. Namely, a leaf version of 0xc0 MUST be used.

In the case of a commitment breach, the to_delay_script_root can be used along side <revocationpubkey> to derive the private key needed to sweep the top-level key spend path. The control block can be crafted as such:

revoke_control_block = (output_key_y_parity | 0xc0) || taproot_nums_point || revoke_script

A valid witness is then:

<revoke_sig> <revoke_script> <revoke_control_block>

In the case of a routine force close, the script path must be revealed so the broadcaster can sweep their funds after a delay. The control block to spend is only 33 bytes, as it just includes the internal key (along with the y-parity bit and leaf version):

delay_control_block = (output_key_y_parity | 0xc0) || taproot_nums-point || to_delay_srcipt

A valid witness is then:

<local_delayedsig> <to_delay_script> <delay_control_block>

As with base channels, the nSequence field must be set to to_self_delay.

To Remote Outputs

As we inherit the anchor output, semantics we want to ensure that the remote party can unilaterally sweep their funds after the 1 block CSV delay. In order to achieve this property, we’ll utilize a NUMS point (simple_taproot_nums) By using this point as the internal key, we ensure that the remote party isn’t able to by pass the CSV delay.

Using a NUMS key has a key benefit: the static internal key allows the remote party to scan for their output on chain, which is useful for various recovery scenarios.

The to_remote output has the following form:

This output can be swept by the remote party with the following witness:

<remote_sig> <to_remote_script> <to_remote_control_block>

where to_remote_control_block is:

(output_key_y_parity | 0xc0) || combined_funding_key

The sequence field of the input MUST also be set to 1.

Anchor Outputs

For simple taproot channels (option_simple_taproot) we’ll maintain the same form as base segwit channels, but instead will utilize local_delayedpubkey and the remotepubkey rather than the multi-sig keys as that’s no longer revealed due to musig2.

An anchor output has the following form:

This output can be swept by anyone after 16 blocks with the following witness:

<anchor_script> <anchor_control_block>

where anchor_control_block is:

(output_key_y_parity | 0xc0) || anchor_internal_key

nSequence needs to be set to 16.

HTLC Scripts & Transactions

Offered HTLCs

We retain the same second-level HTLC mappings as base channels. The main modifications are using the revocation public key as the internal key, and splitting the timeout and success paths into individual script leaves.

An offered HTLC has the following form:

In order to spend a offered HTLC, via either script path, an inclusion_proof must be specified along with the control block. This inclusion_proof is simply the tap_leaf hash of the path not taken.

Accepted HTLCs

Accepted HTLCs inherit a similar format:

Note that there is no OP_CHECKSEQUENCEVERIFY in the offered HTLC’s timeout path nor in the accepted HTLC’s success path. This is not needed here as these paths require a remote signature that commits to the sequence, which needs to be set at 1.

In order to spend an accepted HTLC, via either script path, an inclusion_proof must be specified along with the control block. This inclusion_proof is simply the tap_leaf hash of the path not taken.

HTLC Second Level Transactions

For the second level transactions, we retain the existing structure: a 2-of-2 multi-spend going to a CLTV delayed output. Like the normal HTLC transactions, we also place the revocation key as the internal key, allowing easy breach sweeps with each party only retaining the specific script root.

An HTLC-Success or HTLC-Timeout is a one-in-one-out transaction signed using the SIGHASH_SINGLE|SIGHASH_ANYONECANPAY flag. These transactions always have zero fees attached, forcing them to be aggregated with each other and a change input.

HTLC-Success Transactions

A HTLC-Success transaction has the following structure:

HTLC-Timeout Transactions

A HTLC-Timeout transaction has the following structure:

Appendix

Footnotes

Test Vectors

All test vectors are derived deterministically from a single 32-byte seed: 000102030405060708090a0b0c0d0e0f101112131415161718191a1b1c1d1e1f. Private keys are produced via SHA256(seed || label) where label is a fixed ASCII string for each key (e.g. "local-funding", "remote-funding", etc.). The per-commitment point is derived by computing SHA256(seed || "local-per-commit-secret") and using the result as the per-commitment secret scalar, then multiplying by the generator to obtain the per-commitment point.

The vectors cover two areas:

  1. Script vectors: the decomposed tapscript trees for every output type (funding, to_local, to_remote, anchors, offered/accepted HTLCs on both local and remote commits, and second-level HTLC transactions). Each entry includes the raw leaf scripts, leaf hashes, tapscript root, internal key, output key, and the resulting pkScript.

  2. Transaction vectors: full serialized commitment transactions and their HTLC resolution transactions for three scenarios — a simple commitment with no HTLCs, a commitment with five untrimmed HTLCs, and a commitment with the same HTLCs at a higher fee rate causing some to be trimmed.

Channel parameters used: funding_amount = 10,000,000 sat, dust_limit = 354 sat (taproot dust), csv_delay = 144 blocks, commit_height = 42, fee_per_kw as specified per test case.

Key Derivation Labels

The following labels are used with SHA256(seed || label) to derive each private key:

Key Label
local_funding_privkey "local-funding"
remote_funding_privkey "remote-funding"
local_payment_basepoint_secret "local-payment-basepoint"
remote_payment_basepoint_secret "remote-payment-basepoint"
local_delayed_payment_basepoint_secret "local-delayed-payment-basepoint"
remote_revocation_basepoint_secret "remote-revocation-basepoint"
local_htlc_basepoint_secret "local-htlc-basepoint"
remote_htlc_basepoint_secret "remote-htlc-basepoint"
local_per_commit_secret "local-per-commit-secret"

MuSig2 Nonce Generation

MuSig2 partial signatures require deterministic nonces so that test vectors are reproducible across implementations. The signing randomness for each party’s JIT nonces is derived as SHA256(seed || label) using:

Party Label
Local signer "local-signing-rand"
Remote signer "remote-signing-rand"

The resulting 32-byte hash is used as the nonce randomness input to the MuSig2 signing session.

Because different MuSig2 implementations (e.g., libsecp256k1-zkp vs btcd) may produce different nonces from the same randomness input, the test vectors include both the raw secret nonces and the derived public nonces so that implementations can inject them directly rather than re-derive them.

Each transaction test case includes the following nonce fields:

Field Size Description
local_nonce 66 bytes Local party’s public nonce for this commitment tx
remote_nonce 66 bytes Remote party’s public nonce for this commitment tx
local_sec_nonce 97 bytes Local party’s secret nonce (two 32-byte scalars + 33-byte pubkey)
remote_sec_nonce 97 bytes Remote party’s secret nonce (two 32-byte scalars + 33-byte pubkey)

All nonces in a given test case correspond to the same commitment transaction (the local party’s commitment, as produced by ForceClose). Specifically:

To replay the MuSig2 signing from the test vectors:

  1. Aggregate the two public nonces using NonceAgg from BIP-327.
  2. Use each party’s secret nonce with Sign to reproduce their partial signature.
  3. Combine both partial signatures to obtain the final 64-byte Schnorr signature, which should match the commitment transaction witness.

Commitment Transaction Signatures

The remote_partial_sig field in each transaction test case is a 32-byte MuSig2 partial signature scalar (hex-encoded). This is the remote party’s contribution to the combined Schnorr signature on the commitment transaction. The commitment transaction witness contains the final aggregated 64-byte Schnorr signature produced by combining both parties’ partial signatures.

HTLC Resolution Transactions

Each htlc_descs entry describes a second-level HTLC transaction that spends from one of the commitment transaction’s HTLC outputs. The entries are ordered by their corresponding commitment transaction output index (BIP 69 ordering), which matches the order of htlc_signature messages exchanged during the commitment signing protocol.

The remote_partial_sig_hex for HTLC transactions is a 64-byte Schnorr signature (not a MuSig2 partial sig), since HTLC second-level transactions use a regular tapscript spend path rather than a keyspend MuSig2 path. These Schnorr signatures use BIP-340 deterministic nonce derivation with zero auxrand (32 zero bytes). Implementations must use the same nonce derivation to reproduce matching signatures — passing no auxiliary randomness (or explicitly zero bytes) to the BIP-340 Sign algorithm.

The resolution_tx_hex contains the fully serialized second-level transaction with a complete witness stack. For HTLC-success transactions, the witness layout is:

<remote_htlcsig> <local_htlcsig> <payment_preimage> <htlc_success_script> <control_block>

For HTLC-timeout transactions, the witness layout is:

<remote_htlcsig> <local_htlcsig> <htlc_timeout_script> <control_block>

HTLC Trimming

Taproot channels use zero-fee HTLC transactions, meaning the HTLC output value on the commitment transaction equals the HTLC amount directly (no fee is deducted from the output). As a result, HTLC trimming depends solely on whether the HTLC amount falls below the dust_limit_satoshis, not on the fee rate. The “commitment tx with some HTLCs trimmed” test case uses dust_limit = 2500 sat to trim the three smallest test HTLCs (1000, 2000, and 2000 sats), leaving only the 3000 and 4000 sat HTLCs on the commitment transaction.

Implementations SHOULD regenerate these vectors from the seed using the derivation method described above and verify that all intermediate values (keys, scripts, leaf hashes, transactions) match.

{
  "params": {
    "seed": "000102030405060708090a0b0c0d0e0f101112131415161718191a1b1c1d1e1f",
    "funding_amount_satoshis": 10000000,
    "dust_limit_satoshis": 354,
    "csv_delay": 144,
    "commit_height": 42,
    "nums_point": "02dca094751109d0bd055d03565874e8276dd53e926b44e3bd1bb6bf4bc130a279",
    "keys": {
      "local_funding_privkey": "20ae2d254ab29afd3dcbf8744a5b88d06070f55a4bd5532483a093ac4db91277",
      "local_funding_pubkey": "03b7203dec7c13896b6ff1f58b24f84458c441720a12b5a57426397e22f0a8c78b",
      "remote_funding_privkey": "f0c5500a9dbd7cdcd46ced7bdeb937d4dcbf90f9b9357626e7ee54ab024c3df0",
      "remote_funding_pubkey": "02956e6845a6f346f97c5e028c0f8ab38a76b0124fd7184deab60f682b3e657fdb",
      "local_payment_basepoint_secret": "277975b5b081a9cbc4834e066d7bb494e4fde4f7637257dd3d312a0ae7cb7754",
      "local_payment_basepoint": "03955b6085296cbd2447a1dde0f7e273e19b83e83de1814993b1517aaf193b7f33",
      "remote_payment_basepoint_secret": "f1cd3a5ca44b52baf4eacb849fbf06e75aace97477b8bfe31d2b814dbbb562b1",
      "remote_payment_basepoint": "03595f2ef2a51d2250a21077dbea4a7fc3ce550f10676996bf63719e2a71d1f4c9",
      "local_delayed_payment_basepoint_secret": "83ccf0b638c514db5ebefdc6cbf901505e2bb20edb2bb7248ce1a51523325f9b",
      "local_delayed_payment_basepoint": "02ae68d8ff4c59864c03a42bbff6c07f9ae18047e0daa9bc40d07c410f9a0f7899",
      "remote_revocation_basepoint_secret": "36c4175b91cff9731a63d1472b5b1c4cf3e7b688e87d5fb806b2e8350484e68d",
      "remote_revocation_basepoint": "02c354121ef71922b5cb32fa685c08ac0014b558f96e28f383c45eb28b7da264c3",
      "local_htlc_basepoint_secret": "786eb5024e4851bea3ddc6e40036c81b1efcf50eeed440eedefe5245bde6fc14",
      "local_htlc_basepoint": "033ce88bf3c8333e242996964ac91ee7cd945bfe4c49668ea10f3211f3d418fbc8",
      "remote_htlc_basepoint_secret": "51c9b6cf8279def85e3925bc8f16fc0ff100ee7b03ce7c954149ca29c834b684",
      "remote_htlc_basepoint": "02932dfbf6737001e3c516696ae3dcd323fd91a01ce7898f7f91ab98eebacc323e",
      "local_per_commit_secret": "037b507180b3985cea6396d6a70987cea11ccd05fde49e943a3ea0fe56ee33ed",
      "local_per_commit_point": "02a0f5a09017c1dec2d30dd54a25dc4037fc5a2aa3832ee3c7b58f3a88a0836287",
      "derived_local_delayed_pubkey": "0315ec0138eb42f1ab4603042123988d53c854e89d1d87aa4dbb97a57482029c05",
      "derived_revocation_pubkey": "03d4c77088d346bce67c13bbbf82ca112588f4b1c9595a1f8af3be9b2f95a109a0",
      "derived_local_htlc_pubkey": "0271e82ef65d5c667159036bfcf662cac2f6c41e38323d148bbbd00fdcd923739e",
      "derived_remote_htlc_pubkey": "032deba21cf03c42362c9f912094f62ba045a040a2060882ba1ed3abf1f664a47d",
      "derived_remote_payment_pubkey": "03595f2ef2a51d2250a21077dbea4a7fc3ce550f10676996bf63719e2a71d1f4c9"
    }
  },
  "scripts": {
    "funding": {
      "funding_tx_hex": "02000000010000000000000000000000000000000000000000000000000000000000000000000000000000000000018096980000000000225120d0ebb4909d563a7ae1213fddede4ae54132fba0ef0b97ee3f8469191fecd348e00000000",
      "combined_key": "d0ebb4909d563a7ae1213fddede4ae54132fba0ef0b97ee3f8469191fecd348e",
      "pkscript": "5120d0ebb4909d563a7ae1213fddede4ae54132fba0ef0b97ee3f8469191fecd348e"
    },
    "to_local": {
      "scripts": {
        "revocation": "2015ec0138eb42f1ab4603042123988d53c854e89d1d87aa4dbb97a57482029c057520d4c77088d346bce67c13bbbf82ca112588f4b1c9595a1f8af3be9b2f95a109a0ac",
        "settle": "2015ec0138eb42f1ab4603042123988d53c854e89d1d87aa4dbb97a57482029c05ad029000b2"
      },
      "leaf_hashes": {
        "revocation": "8fcd64d212bbbf1bcec2360bbf229963240d05992fc2efb482fe6dca85b9469a",
        "settle": "dbf0400e9c7c57f30b6ad0b0677e396b5a002cbf050d873c8925b966048e6a62"
      },
      "tapscript_root": "b8b76c2e893ca785072f0d7393e35d5bd72adf8b7ff2a53538aa664378a38a36",
      "internal_key": "02dca094751109d0bd055d03565874e8276dd53e926b44e3bd1bb6bf4bc130a279",
      "output_key": "023e1fcbbd06c8a7414704612c72be9834a75d86ed85b29f0ef0c52e1950afaff3",
      "pkscript": "51203e1fcbbd06c8a7414704612c72be9834a75d86ed85b29f0ef0c52e1950afaff3"
    },
    "to_remote": {
      "scripts": {
        "settle": "20595f2ef2a51d2250a21077dbea4a7fc3ce550f10676996bf63719e2a71d1f4c9ad51b2"
      },
      "leaf_hashes": {
        "settle": "63ce35b16eb8f8687293d5a88c1d8ada3236843b79ca315fe9dd7c47f30f2bc9"
      },
      "tapscript_root": "63ce35b16eb8f8687293d5a88c1d8ada3236843b79ca315fe9dd7c47f30f2bc9",
      "internal_key": "02dca094751109d0bd055d03565874e8276dd53e926b44e3bd1bb6bf4bc130a279",
      "output_key": "023609bb705034e5629aa6ec05c5ca906ac89ac08b34c4583c259521ec30174408",
      "pkscript": "51203609bb705034e5629aa6ec05c5ca906ac89ac08b34c4583c259521ec30174408"
    },
    "local_anchor": {
      "scripts": {
        "sweep": "60b2"
      },
      "leaf_hashes": {
        "sweep": "2b88a8f3f52386d61d5b3f2d822df659c35214d7360ed05352ad7ddc1ab03912"
      },
      "tapscript_root": "2b88a8f3f52386d61d5b3f2d822df659c35214d7360ed05352ad7ddc1ab03912",
      "internal_key": "0315ec0138eb42f1ab4603042123988d53c854e89d1d87aa4dbb97a57482029c05",
      "output_key": "02f67ab012701705f3203d132f909a6810ef18c5da4c11d986cb50818803b8344e",
      "pkscript": "5120f67ab012701705f3203d132f909a6810ef18c5da4c11d986cb50818803b8344e"
    },
    "remote_anchor": {
      "scripts": {
        "sweep": "60b2"
      },
      "leaf_hashes": {
        "sweep": "2b88a8f3f52386d61d5b3f2d822df659c35214d7360ed05352ad7ddc1ab03912"
      },
      "tapscript_root": "2b88a8f3f52386d61d5b3f2d822df659c35214d7360ed05352ad7ddc1ab03912",
      "internal_key": "03595f2ef2a51d2250a21077dbea4a7fc3ce550f10676996bf63719e2a71d1f4c9",
      "output_key": "021249c50576fdf914caa14f9221370b986df520bdbc73f57d5056a86ee03e5ac4",
      "pkscript": "51201249c50576fdf914caa14f9221370b986df520bdbc73f57d5056a86ee03e5ac4"
    },
    "offered_htlc_local_commit": {
      "scripts": {
        "success": "82012088a914b8bcb07f6344b42ab04250c86a6e8b75d3fdbbc688202deba21cf03c42362c9f912094f62ba045a040a2060882ba1ed3abf1f664a47dad51b2",
        "timeout": "2071e82ef65d5c667159036bfcf662cac2f6c41e38323d148bbbd00fdcd923739ead202deba21cf03c42362c9f912094f62ba045a040a2060882ba1ed3abf1f664a47dac"
      },
      "leaf_hashes": {
        "success": "cd4b7ba74d132998f2bcea85f76082f5018e614c86f27f2631b6569c4914320f",
        "timeout": "dd0bd08b3df902c399f5493a682f6c50c476c89e233ba454e89a234d2d16ffe3"
      },
      "tapscript_root": "f36c8bd45002c5264cfce9944211e7bc6ea974a6b90cf99a87812d18acf28a2a",
      "internal_key": "03d4c77088d346bce67c13bbbf82ca112588f4b1c9595a1f8af3be9b2f95a109a0",
      "output_key": "033e5c3be9f4ce7ae07c28ad5e0eb0ab617c06eeb82b8d6ef10a5bf561848df5f0",
      "pkscript": "51203e5c3be9f4ce7ae07c28ad5e0eb0ab617c06eeb82b8d6ef10a5bf561848df5f0"
    },
    "offered_htlc_remote_commit": {
      "scripts": {
        "success": "82012088a914b8bcb07f6344b42ab04250c86a6e8b75d3fdbbc688202deba21cf03c42362c9f912094f62ba045a040a2060882ba1ed3abf1f664a47dad51b2",
        "timeout": "2071e82ef65d5c667159036bfcf662cac2f6c41e38323d148bbbd00fdcd923739ead202deba21cf03c42362c9f912094f62ba045a040a2060882ba1ed3abf1f664a47dac"
      },
      "leaf_hashes": {
        "success": "cd4b7ba74d132998f2bcea85f76082f5018e614c86f27f2631b6569c4914320f",
        "timeout": "dd0bd08b3df902c399f5493a682f6c50c476c89e233ba454e89a234d2d16ffe3"
      },
      "tapscript_root": "f36c8bd45002c5264cfce9944211e7bc6ea974a6b90cf99a87812d18acf28a2a",
      "internal_key": "03d4c77088d346bce67c13bbbf82ca112588f4b1c9595a1f8af3be9b2f95a109a0",
      "output_key": "033e5c3be9f4ce7ae07c28ad5e0eb0ab617c06eeb82b8d6ef10a5bf561848df5f0",
      "pkscript": "51203e5c3be9f4ce7ae07c28ad5e0eb0ab617c06eeb82b8d6ef10a5bf561848df5f0"
    },
    "accepted_htlc_local_commit": {
      "scripts": {
        "success": "82012088a914b8bcb07f6344b42ab04250c86a6e8b75d3fdbbc688202deba21cf03c42362c9f912094f62ba045a040a2060882ba1ed3abf1f664a47dad2071e82ef65d5c667159036bfcf662cac2f6c41e38323d148bbbd00fdcd923739eac",
        "timeout": "2071e82ef65d5c667159036bfcf662cac2f6c41e38323d148bbbd00fdcd923739ead51b26902f401b1"
      },
      "leaf_hashes": {
        "success": "69192ca730d4480044ade8741b8bd0845a32880aebaf58bc6f9186f8d2be8cbf",
        "timeout": "4da43c795365bf757ed1e9656d12ea744b4cf52b01719a3ea94e6569115623f0"
      },
      "tapscript_root": "1a990caa4bb0ed41ceb19e7466fcea5d9b31e3da968f348f6223201c5831d0a3",
      "internal_key": "03d4c77088d346bce67c13bbbf82ca112588f4b1c9595a1f8af3be9b2f95a109a0",
      "output_key": "029aadbdd9aff986e5ea086cf53ae062972d33d0a5c7f5fb986dafec7fa6d7e6ea",
      "pkscript": "51209aadbdd9aff986e5ea086cf53ae062972d33d0a5c7f5fb986dafec7fa6d7e6ea"
    },
    "accepted_htlc_remote_commit": {
      "scripts": {
        "success": "82012088a914b8bcb07f6344b42ab04250c86a6e8b75d3fdbbc688202deba21cf03c42362c9f912094f62ba045a040a2060882ba1ed3abf1f664a47dad2071e82ef65d5c667159036bfcf662cac2f6c41e38323d148bbbd00fdcd923739eac",
        "timeout": "2071e82ef65d5c667159036bfcf662cac2f6c41e38323d148bbbd00fdcd923739ead51b26902f401b1"
      },
      "leaf_hashes": {
        "success": "69192ca730d4480044ade8741b8bd0845a32880aebaf58bc6f9186f8d2be8cbf",
        "timeout": "4da43c795365bf757ed1e9656d12ea744b4cf52b01719a3ea94e6569115623f0"
      },
      "tapscript_root": "1a990caa4bb0ed41ceb19e7466fcea5d9b31e3da968f348f6223201c5831d0a3",
      "internal_key": "03d4c77088d346bce67c13bbbf82ca112588f4b1c9595a1f8af3be9b2f95a109a0",
      "output_key": "029aadbdd9aff986e5ea086cf53ae062972d33d0a5c7f5fb986dafec7fa6d7e6ea",
      "pkscript": "51209aadbdd9aff986e5ea086cf53ae062972d33d0a5c7f5fb986dafec7fa6d7e6ea"
    },
    "second_level_htlc_success": {
      "scripts": {
        "success": "2015ec0138eb42f1ab4603042123988d53c854e89d1d87aa4dbb97a57482029c05ad029000b2"
      },
      "leaf_hashes": {
        "success": "dbf0400e9c7c57f30b6ad0b0677e396b5a002cbf050d873c8925b966048e6a62"
      },
      "tapscript_root": "dbf0400e9c7c57f30b6ad0b0677e396b5a002cbf050d873c8925b966048e6a62",
      "internal_key": "03d4c77088d346bce67c13bbbf82ca112588f4b1c9595a1f8af3be9b2f95a109a0",
      "output_key": "02df20bcec43daa75161f7d013254e401812e0fee8bc3369220b6a33672fc18ba0",
      "pkscript": "5120df20bcec43daa75161f7d013254e401812e0fee8bc3369220b6a33672fc18ba0"
    },
    "second_level_htlc_timeout": {
      "scripts": {
        "success": "2015ec0138eb42f1ab4603042123988d53c854e89d1d87aa4dbb97a57482029c05ad029000b2"
      },
      "leaf_hashes": {
        "success": "dbf0400e9c7c57f30b6ad0b0677e396b5a002cbf050d873c8925b966048e6a62"
      },
      "tapscript_root": "dbf0400e9c7c57f30b6ad0b0677e396b5a002cbf050d873c8925b966048e6a62",
      "internal_key": "03d4c77088d346bce67c13bbbf82ca112588f4b1c9595a1f8af3be9b2f95a109a0",
      "output_key": "02df20bcec43daa75161f7d013254e401812e0fee8bc3369220b6a33672fc18ba0",
      "pkscript": "5120df20bcec43daa75161f7d013254e401812e0fee8bc3369220b6a33672fc18ba0"
    }
  },
  "transactions": [
    {
      "name": "simple commitment tx with no HTLCs",
      "local_balance_msat": 7000000000,
      "remote_balance_msat": 3000000000,
      "fee_per_kw": 15000,
      "htlcs": null,
      "local_sec_nonce": "22a453171ba4a634da1addcf660d63d8e23fb63169a2a7206f4e23290e4cc59bb3c3011fe3c31cb4f1192a2df56c2e52350ce0a82060fadf2404af9f81652c5f03b7203dec7c13896b6ff1f58b24f84458c441720a12b5a57426397e22f0a8c78b",
      "remote_sec_nonce": "ccdaea6955c7bd9fcb082dc67e32809a5bdd3a3edf770cbb990116c45f4b006e4b56aa81f8e555d6bd1906b159af16d0ac352690ccff6f6a99c43842ac2606ca02956e6845a6f346f97c5e028c0f8ab38a76b0124fd7184deab60f682b3e657fdb",
      "local_nonce": "025f2272ea289c5fe9d52d411f5a50a6d4882341bf0ecb201d5675850a2ba0b09d025bc489cf67752134ba81f8d7f1146d7455baf3190de75a6a661e2405212991a9",
      "remote_nonce": "02d324627074522af8cf4287caf1e073a3493550b99aed2697e58f476ec402e272039c25fc616207e15917b7145cefcb4c9c702580baf255597d2fa115564a74a130",
      "remote_partial_sig": "3fa93659d4c2d590eadbd422595a37597ed58607e026a91f4e6e19329134a931",
      "expected_commitment_tx_hex": "020000000001015474cba49124ab0c4327c244bb2907059585c4af3fa5f3469701534120fec0170000000000c5fe1780044a010000000000002251201249c50576fdf914caa14f9221370b986df520bdbc73f57d5056a86ee03e5ac44a01000000000000225120f67ab012701705f3203d132f909a6810ef18c5da4c11d986cb50818803b8344ec0c62d00000000002251203609bb705034e5629aa6ec05c5ca906ac89ac08b34c4583c259521ec3017440874946a00000000002251203e1fcbbd06c8a7414704612c72be9834a75d86ed85b29f0ef0c52e1950afaff30140a4a9eb512a2f4094efdd2c566f1f20cc8a6e2c307a4a44cc3f9fea7fa147dd7038f1b048aa43fa0b4009175c1c37c37b96c01058541f9e1b61110fce4e831d9f55dc1920",
      "htlc_descs": null
    },
    {
      "name": "commitment tx with five HTLCs untrimmed",
      "local_balance_msat": 6988000000,
      "remote_balance_msat": 3000000000,
      "fee_per_kw": 644,
      "htlcs": [
        {
          "incoming": true,
          "amount_msat": 1000000,
          "expiry": 500,
          "preimage": "0000000000000000000000000000000000000000000000000000000000000000"
        },
        {
          "incoming": true,
          "amount_msat": 2000000,
          "expiry": 501,
          "preimage": "0101010101010101010101010101010101010101010101010101010101010101"
        },
        {
          "incoming": false,
          "amount_msat": 2000000,
          "expiry": 502,
          "preimage": "0202020202020202020202020202020202020202020202020202020202020202"
        },
        {
          "incoming": false,
          "amount_msat": 3000000,
          "expiry": 503,
          "preimage": "0303030303030303030303030303030303030303030303030303030303030303"
        },
        {
          "incoming": true,
          "amount_msat": 4000000,
          "expiry": 504,
          "preimage": "0404040404040404040404040404040404040404040404040404040404040404"
        }
      ],
      "local_sec_nonce": "22a453171ba4a634da1addcf660d63d8e23fb63169a2a7206f4e23290e4cc59bb3c3011fe3c31cb4f1192a2df56c2e52350ce0a82060fadf2404af9f81652c5f03b7203dec7c13896b6ff1f58b24f84458c441720a12b5a57426397e22f0a8c78b",
      "remote_sec_nonce": "8c40a8ab26f1bd7d58010e991c72b0f102df6d0f050df28f56cefdafb9d06479958ea0a72180184e338b1b77fdf20690d5d980aac5c34cf123b189e373dba33e02956e6845a6f346f97c5e028c0f8ab38a76b0124fd7184deab60f682b3e657fdb",
      "local_nonce": "025f2272ea289c5fe9d52d411f5a50a6d4882341bf0ecb201d5675850a2ba0b09d025bc489cf67752134ba81f8d7f1146d7455baf3190de75a6a661e2405212991a9",
      "remote_nonce": "038a4018a074b5ddfc1424551e871bd739259c4e209f47177eb67c70cfbdb1e57c03c75684ad3a42d8c86a3eddb83b8160d67ef272078b44f21a8f889ee25e2459d3",
      "remote_partial_sig": "46efde50f08c128aa6472bbd50ea156fb9bde7b013f5e042f700729c94053613",
      "expected_commitment_tx_hex": "020000000001015474cba49124ab0c4327c244bb2907059585c4af3fa5f3469701534120fec0170000000000c5fe1780094a010000000000002251201249c50576fdf914caa14f9221370b986df520bdbc73f57d5056a86ee03e5ac44a01000000000000225120f67ab012701705f3203d132f909a6810ef18c5da4c11d986cb50818803b8344ee8030000000000002251209ce82cd1b1f6f975049d58019a7145a3ec9680079969cf929d7d2c4bc9b30637d0070000000000002251208937f8afbc80cf4ba773f1adc3d63ea26259f80f5a3ba622211906d2e7e6e23dd007000000000000225120bf9ae94dda9b5b88485cc67a966ec946b237d19626916dee034b789ebd7fd5fcb80b0000000000002251208fe2e1306e414e896dfd879475b5c1a6a01d4e79b32c0544aa185ccb73c392aaa00f000000000000225120d93389ba5cdde8570d3ba73487ff7fc9f8c3816645009e42110fe5239f5a3e62c0c62d00000000002251203609bb705034e5629aa6ec05c5ca906ac89ac08b34c4583c259521ec30174408b3996a00000000002251203e1fcbbd06c8a7414704612c72be9834a75d86ed85b29f0ef0c52e1950afaff301409dfe3b178022d975e4b86bd1f04bccfc7576363dbaf58f2ac682136ad89cbeb1a1d07eca1e0bc547b5c5c1133214565e5dfdc230bc7d4736aa7e1be3fb8269d355dc1920",
      "htlc_descs": [
        {
          "remote_partial_sig_hex": "fc97f7cfb97e1e48792b0ed174704cd98c886d368ede5adeb6288f0b350c8f88d076488973d0656da72d072e03eb9eb8b31737850894bca0924d8fdd63ddea69",
          "resolution_tx_hex": "02000000000101ec4c0a34c981864f9badcb8383bbe42ec6b32e68c2aa1a7c7c2e8422adde673f02000000000100000001e803000000000000225120df20bcec43daa75161f7d013254e401812e0fee8bc3369220b6a33672fc18ba00541fc97f7cfb97e1e48792b0ed174704cd98c886d368ede5adeb6288f0b350c8f88d076488973d0656da72d072e03eb9eb8b31737850894bca0924d8fdd63ddea6983405bd66541625ba684bb6ff0def3c542bb88d5195a760cb616a5d09dec6823238ccdde18c99d4f3634394d9c23d0e198babc609f464d9b4552664ca5d3b985758f2000000000000000000000000000000000000000000000000000000000000000005f82012088a914b8bcb07f6344b42ab04250c86a6e8b75d3fdbbc6882071e82ef65d5c667159036bfcf662cac2f6c41e38323d148bbbd00fdcd923739ead202deba21cf03c42362c9f912094f62ba045a040a2060882ba1ed3abf1f664a47dac41c0d4c77088d346bce67c13bbbf82ca112588f4b1c9595a1f8af3be9b2f95a109a0e5e8fd071b9ade6367122afbd8acacc1a6727ddb6d478612af30827590027e0300000000"
        },
        {
          "remote_partial_sig_hex": "c99d8d1ca721d1d4b9796cde49698fd46bb3faddd2bc7215de291ae9bd85cd9b2ab9bf40e36c752b698098b0986abe92b3cb21de8d6a388d9a6988d468e981e5",
          "resolution_tx_hex": "02000000000101ec4c0a34c981864f9badcb8383bbe42ec6b32e68c2aa1a7c7c2e8422adde673f03000000000100000001d007000000000000225120df20bcec43daa75161f7d013254e401812e0fee8bc3369220b6a33672fc18ba00541c99d8d1ca721d1d4b9796cde49698fd46bb3faddd2bc7215de291ae9bd85cd9b2ab9bf40e36c752b698098b0986abe92b3cb21de8d6a388d9a6988d468e981e583406a52ec691b47371892192e7222a76d978c18038b3f12479977366a09d2db91e66091332158d8f0b4e125394e1bf2d7ab40ab564c49e0686ffad56eadd6a1297e2001010101010101010101010101010101010101010101010101010101010101015f82012088a9144b6b2e5444c2639cc0fb7bcea5afba3f3cdce239882071e82ef65d5c667159036bfcf662cac2f6c41e38323d148bbbd00fdcd923739ead202deba21cf03c42362c9f912094f62ba045a040a2060882ba1ed3abf1f664a47dac41c0d4c77088d346bce67c13bbbf82ca112588f4b1c9595a1f8af3be9b2f95a109a0127d1790461eff920f14ba7cff2093c44b8a83e6f0a959fa60e04cf8c435cf4b00000000"
        },
        {
          "remote_partial_sig_hex": "b361ed8b70a09f4128fe610db649abcaafbc9b8600136e6f1b9735b4781cd65681faa32c29fef2a1485cc569c655b31b8eb75ab593749dd7f7d788fdec489133",
          "resolution_tx_hex": "02000000000101ec4c0a34c981864f9badcb8383bbe42ec6b32e68c2aa1a7c7c2e8422adde673f04000000000100000001d007000000000000225120df20bcec43daa75161f7d013254e401812e0fee8bc3369220b6a33672fc18ba00441b361ed8b70a09f4128fe610db649abcaafbc9b8600136e6f1b9735b4781cd65681faa32c29fef2a1485cc569c655b31b8eb75ab593749dd7f7d788fdec48913383403e94dbe70a26fc19b0d0053dfbf3da4c3e75dacf4abe337866645ffe21834a152f2edf7e520f352f104eef17fefa5a1535d692012cc766d36bd54f658c5c797f442071e82ef65d5c667159036bfcf662cac2f6c41e38323d148bbbd00fdcd923739ead202deba21cf03c42362c9f912094f62ba045a040a2060882ba1ed3abf1f664a47dac41c1d4c77088d346bce67c13bbbf82ca112588f4b1c9595a1f8af3be9b2f95a109a040b30263c4d7cd1fa6544e8bc8cd9efe857d7b5fd691c958936c3a2e0df2232ef6010000"
        },
        {
          "remote_partial_sig_hex": "9d1193d1bae8793ec502aa705a43a140e9f4c46607b4b8b414f76923c746a81cc320ffef6575f4c1ba55795770b41885dc90ed19025522805b1d0f5f5d440ebd",
          "resolution_tx_hex": "02000000000101ec4c0a34c981864f9badcb8383bbe42ec6b32e68c2aa1a7c7c2e8422adde673f05000000000100000001b80b000000000000225120df20bcec43daa75161f7d013254e401812e0fee8bc3369220b6a33672fc18ba004419d1193d1bae8793ec502aa705a43a140e9f4c46607b4b8b414f76923c746a81cc320ffef6575f4c1ba55795770b41885dc90ed19025522805b1d0f5f5d440ebd8340b149f17aab590815fbe4b19796dfc98aa857e81cdc1d15c82d64a2b626f40af8ae2a884197d74071e9b5648c7b5380db1084ac8ed2a8ed54ca9d589e6b5f7d8a442071e82ef65d5c667159036bfcf662cac2f6c41e38323d148bbbd00fdcd923739ead202deba21cf03c42362c9f912094f62ba045a040a2060882ba1ed3abf1f664a47dac41c0d4c77088d346bce67c13bbbf82ca112588f4b1c9595a1f8af3be9b2f95a109a064c44563d1bd58fa25c5c3ca7303c75849b6b3d91bf2e28f27068db4319b4c2ff7010000"
        },
        {
          "remote_partial_sig_hex": "58338a2d50a03ea615f0e0e295b12413308e6381412c14d276c4b39a2f1d17193a689cbe2ad0d33a63344cff36daa2edc94aa566d743ad6526ddb5cdb5819ea0",
          "resolution_tx_hex": "02000000000101ec4c0a34c981864f9badcb8383bbe42ec6b32e68c2aa1a7c7c2e8422adde673f06000000000100000001a00f000000000000225120df20bcec43daa75161f7d013254e401812e0fee8bc3369220b6a33672fc18ba0054158338a2d50a03ea615f0e0e295b12413308e6381412c14d276c4b39a2f1d17193a689cbe2ad0d33a63344cff36daa2edc94aa566d743ad6526ddb5cdb5819ea08340efcfcda15da18a2791a80700b2716d2386ea67649a5e43a505dbe22bd110cc2352e558d62e7abd7afe7640d2ee414affd88555378bfe05aa28d0fa289e8d1b542004040404040404040404040404040404040404040404040404040404040404045f82012088a91418bc1a114ccf9c052d3d23e28d3b0a9d12274342882071e82ef65d5c667159036bfcf662cac2f6c41e38323d148bbbd00fdcd923739ead202deba21cf03c42362c9f912094f62ba045a040a2060882ba1ed3abf1f664a47dac41c1d4c77088d346bce67c13bbbf82ca112588f4b1c9595a1f8af3be9b2f95a109a06c3390c812b2596986592f02c7f22e4f857fb553805ff9ac1c2bda361c47c3fb00000000"
        }
      ]
    },
    {
      "name": "commitment tx with some HTLCs trimmed",
      "local_balance_msat": 6988000000,
      "remote_balance_msat": 3000000000,
      "fee_per_kw": 644,
      "dust_limit_satoshis": 2500,
      "htlcs": [
        {
          "incoming": true,
          "amount_msat": 1000000,
          "expiry": 500,
          "preimage": "0000000000000000000000000000000000000000000000000000000000000000"
        },
        {
          "incoming": true,
          "amount_msat": 2000000,
          "expiry": 501,
          "preimage": "0101010101010101010101010101010101010101010101010101010101010101"
        },
        {
          "incoming": false,
          "amount_msat": 2000000,
          "expiry": 502,
          "preimage": "0202020202020202020202020202020202020202020202020202020202020202"
        },
        {
          "incoming": false,
          "amount_msat": 3000000,
          "expiry": 503,
          "preimage": "0303030303030303030303030303030303030303030303030303030303030303"
        },
        {
          "incoming": true,
          "amount_msat": 4000000,
          "expiry": 504,
          "preimage": "0404040404040404040404040404040404040404040404040404040404040404"
        }
      ],
      "local_sec_nonce": "22a453171ba4a634da1addcf660d63d8e23fb63169a2a7206f4e23290e4cc59bb3c3011fe3c31cb4f1192a2df56c2e52350ce0a82060fadf2404af9f81652c5f03b7203dec7c13896b6ff1f58b24f84458c441720a12b5a57426397e22f0a8c78b",
      "remote_sec_nonce": "8c5bd39820b3e20d65bf72e530078bf5e8ba057c1654d0a15778a0d3225e0233eb8d7b1d3574e40e57a2cd12dc3b33193c0ac17545564df3ff88021f3c30033702956e6845a6f346f97c5e028c0f8ab38a76b0124fd7184deab60f682b3e657fdb",
      "local_nonce": "025f2272ea289c5fe9d52d411f5a50a6d4882341bf0ecb201d5675850a2ba0b09d025bc489cf67752134ba81f8d7f1146d7455baf3190de75a6a661e2405212991a9",
      "remote_nonce": "03fd9fa808377737b105f7df362ed513e3946f2bb49dfbca5c2ce2be138ff0607502e4c73701eae82afa7a01993f62321648a6235ef0c958e35766a9e53e4eaf9d34",
      "remote_partial_sig": "3e454598e0661188da0e4cf1b806b13c627adb7ab38bab27418cc976769771c3",
      "expected_commitment_tx_hex": "020000000001015474cba49124ab0c4327c244bb2907059585c4af3fa5f3469701534120fec0170000000000c5fe1780064a010000000000002251201249c50576fdf914caa14f9221370b986df520bdbc73f57d5056a86ee03e5ac44a01000000000000225120f67ab012701705f3203d132f909a6810ef18c5da4c11d986cb50818803b8344eb80b0000000000002251208fe2e1306e414e896dfd879475b5c1a6a01d4e79b32c0544aa185ccb73c392aaa00f000000000000225120d93389ba5cdde8570d3ba73487ff7fc9f8c3816645009e42110fe5239f5a3e62c0c62d00000000002251203609bb705034e5629aa6ec05c5ca906ac89ac08b34c4583c259521ec30174408009b6a00000000002251203e1fcbbd06c8a7414704612c72be9834a75d86ed85b29f0ef0c52e1950afaff30140dfd9604ad0b4fed040382f4829e20a0ef4b5558d0189178a5e9c26a8b4bd8547fd563ee60884daf91c8a1ae71e08b452a93ad3bdf5c572f642d42606736dc5f755dc1920",
      "htlc_descs": [
        {
          "remote_partial_sig_hex": "7058caa9a075344e095d95736bb6a00c5b7259f439e60e7e1c6cd641a20d6a25c13d2930ebe51a69ffea78daa12b07237179c8b0584c75499f7bfa4f5afa9776",
          "resolution_tx_hex": "020000000001018c47e10e0d210da9e50d73b1adda7a598f79ced25806dd0fa6807bb78780dbbb02000000000100000001b80b000000000000225120df20bcec43daa75161f7d013254e401812e0fee8bc3369220b6a33672fc18ba004417058caa9a075344e095d95736bb6a00c5b7259f439e60e7e1c6cd641a20d6a25c13d2930ebe51a69ffea78daa12b07237179c8b0584c75499f7bfa4f5afa97768340d3a4bcb6c20446364506f75e1d1c4da8ad5ae2f6e5a7ad544965e48f28c02a4e250b0a958a4b2d9d78632771b8f5ea739b63bbf98a6c7511a2456c0d78844642442071e82ef65d5c667159036bfcf662cac2f6c41e38323d148bbbd00fdcd923739ead202deba21cf03c42362c9f912094f62ba045a040a2060882ba1ed3abf1f664a47dac41c0d4c77088d346bce67c13bbbf82ca112588f4b1c9595a1f8af3be9b2f95a109a064c44563d1bd58fa25c5c3ca7303c75849b6b3d91bf2e28f27068db4319b4c2ff7010000"
        },
        {
          "remote_partial_sig_hex": "818132325cc01e441876615f30c3df5c27df1722db49005dff3856226a41f34c776f98a35dd74fe2f863ea23ac611e06d0aac890227346b1fc53dc62c789d372",
          "resolution_tx_hex": "020000000001018c47e10e0d210da9e50d73b1adda7a598f79ced25806dd0fa6807bb78780dbbb03000000000100000001a00f000000000000225120df20bcec43daa75161f7d013254e401812e0fee8bc3369220b6a33672fc18ba00541818132325cc01e441876615f30c3df5c27df1722db49005dff3856226a41f34c776f98a35dd74fe2f863ea23ac611e06d0aac890227346b1fc53dc62c789d37283408e0222c158069b3f19ec0798b3516b79cc2e6293abb1120d54c41c7bae3aa2579c5c3586ad68275a9f99ac14e9a1e48b9c3c7100fd834585264a943c523bea642004040404040404040404040404040404040404040404040404040404040404045f82012088a91418bc1a114ccf9c052d3d23e28d3b0a9d12274342882071e82ef65d5c667159036bfcf662cac2f6c41e38323d148bbbd00fdcd923739ead202deba21cf03c42362c9f912094f62ba045a040a2060882ba1ed3abf1f664a47dac41c1d4c77088d346bce67c13bbbf82ca112588f4b1c9595a1f8af3be9b2f95a109a06c3390c812b2596986592f02c7f22e4f857fb553805ff9ac1c2bda361c47c3fb00000000"
        }
      ]
    }
  ]
}

Acknowledgements

The commitment and HTLC scripts are heavily based off of t-bast’s Lightning Is Getting Taprooty Scriptless-Scripty document.

AJ Towns proposed a more ambitious “one shot” upgrade which includes PTLCs and a modified revocation scheme which this proposal takes inspiration from.

Arik and Wilmer Paulino for suggesting the “JIT nonce” approach used in this specification when sending musig2 partial signatures.
