BIP 341

Introduction

Abstract

This document proposes a new SegWit version 1 output type, with spending rules based on Taproot, Schnorr signatures, and Merkle branches.

This document is licensed under the 3-clause BSD license.

Motivation

This proposal aims to improve privacy, efficiency, and flexibility of Bitcoin’s scripting capabilities without adding new security assumptionsWhat does not adding security assumptions mean? Unforgeability of signatures is a necessary requirement to prevent theft. At least when treating script execution as a digital signature scheme itself, unforgeability can be proven in the Random Oracle Model assuming the Discrete Logarithm problem is hard. A proof for unforgeability of ECDSA in the current script system needs non-standard assumptions on top of that. Note that it is hard in general to model exactly what security for script means, as it depends on the policies and protocols used by wallet software.. Specifically, it seeks to minimize how much information about the spendability conditions of a transaction output is revealed on chain at creation or spending time and to add a number of upgrade mechanisms, while fixing a few minor but long-standing issues.

Design

A number of related ideas for improving Bitcoin’s scripting capabilities have been previously proposed: Schnorr signatures (BIP340), Merkle branches (“MAST”, BIP114, BIP117), new sighash modes (BIP118), new opcodes like CHECKSIGFROMSTACK, Taproot, Graftroot, G’root, and cross-input aggregation.

Combining all these ideas in a single proposal would be an extensive change, be hard to review, and likely miss new discoveries that otherwise could have been made along the way. Not all are equally mature as well. For example, cross-input aggregation interacts in complex ways with upgrade mechanisms, and solutions to that are still in flux. On the other hand, separating them all into independent upgrades would reduce the efficiency and privacy gains to be had, and wallet and service providers may not be inclined to go through many incremental updates. Therefore, we’re faced with a tradeoff between functionality and scope creep. In this design we strike a balance by focusing on the structural script improvements offered by Taproot and Merkle branches, as well as changes necessary to make them usable and efficient. For things like sighashes and opcodes we include fixes for known problems, but exclude new features that can be added independently with no downsides.

As a result we choose this combination of technologies:

Informally, the resulting design is as follows: a new witness version is added (version 1), whose programs consist of 32-byte encodings of points Q. Q is computed as P + hash(P||m)G for a public key P, and the root m of a Merkle tree whose leaves consist of a version number and a script. These outputs can be spent directly by providing a signature for Q, or indirectly by revealing P, the script and leaf version, inputs that satisfy the script, and a Merkle path that proves Q committed to that leaf. All hashes in this construction (the hash for computing Q from P, the hashes inside the Merkle tree’s inner nodes, and the signature hashes used) are tagged to guarantee domain separation.

Specification

This section specifies the Taproot consensus rules. Validity is defined by exclusion: a block or transaction is valid if no condition exists that marks it failed.

The notation below follows that of BIP340. This includes the hashtag(x) notation to refer to SHA256(SHA256(tag) || SHA256(tag) || x). To the best of the authors’ knowledge, no existing use of SHA256 in Bitcoin feeds it a message that starts with two single SHA256 outputs, making collisions between hashtag with other hashes extremely unlikely.

Script validation rules

A Taproot output is a native SegWit output (see BIP141) with version number 1, and a 32-byte witness program. The following rules only apply when such an output is being spent. Any other outputs, including version 1 outputs with lengths other than 32 bytes, or P2SH-wrapped version 1 outputsWhy is P2SH-wrapping not supported? Using P2SH-wrapped outputs only provides 80-bit collision security due to the use of a 160-bit hash. This is considered low, and becomes a security risk whenever the output includes data from more than a single party (public keys, hashes, …)., remain unencumbered.

q is referred to as taproot output key and p as taproot internal key.

Signature validation rules

We first define a reusable common signature message calculation function, followed by the actual signature validation as it’s used in key path spending.

Common signature message

The function SigMsg(hash_type, ext_flag) computes the common portion of the message being signed as a byte array. It is implicitly also a function of the spending transaction and the outputs it spends, but these are not listed to keep notation simple.

The parameter hash_type is an 8-bit unsigned value. The SIGHASH encodings from the legacy script system are reused, including SIGHASH_ALL, SIGHASH_NONE, SIGHASH_SINGLE, and SIGHASH_ANYONECANPAY. We define a new hashtype SIGHASH_DEFAULT (value 0x00) which results in signing over the whole transaction just as for SIGHASH_ALL. The following restrictions apply, which cause validation failure if violated:

The parameter ext_flag is an integer in range 0-127, and is used for indicating (in the message) that extensions are appended to the output of SigMsg()What extensions use the ext_flag mechanism? BIP342 reuses the same common signature message algorithm, but adds BIP342-specific data at the end, which is indicated using ext_flag = 1..

If the parameters take acceptable values, the message is the concatenation of the following data, in order (with byte size of each item listed in parentheses). Numerical values in 2, 4, or 8-byte are encoded in little-endian.

The total length of SigMsg() is at most 206 bytesWhat is the output length of SigMsg()? The total length of SigMsg() can be computed using the following formula: 174 - is_anyonecanpay * 49 - is_none * 32 + has_annex * 32.. Note that this does not include the size of sub-hashes such as sha_prevouts, which may be cached across signatures of the same transaction.

In summary, the semantics of the BIP143 sighash types remain unchanged, except the following:

  1. The way and order of serialization is changed.Why is the serialization in the signature message changed? Hashes that go into the signature message and the message itself are now computed with a single SHA256 invocation instead of double SHA256. There is no expected security improvement by doubling SHA256 because this only protects against length-extension attacks against SHA256 which are not a concern for signature messages because there is no secret data. Therefore doubling SHA256 is a waste of resources. The message computation now follows a logical order with transaction level data first, then input data and output data. This allows to efficiently cache the transaction part of the message across different inputs using the SHA256 midstate. Additionally, sub-hashes can be skipped when calculating the message (for example `sha_prevouts` if SIGHASH_ANYONECANPAY is set) instead of setting them to zero and then hashing them as in BIP143. Despite that, collisions are made impossible by committing to the length of the data (implicit in hash_type and spend_type) before the variable length data.
  2. The signature message commits to the scriptPubKey of the spent output and if the SIGHASH_ANYONECANPAY flag is not set, the message commits to the scriptPubKeys of all outputs spent by the transaction. Why does the signature message commit to the scriptPubKey? This prevents lying to offline signing devices about output being spent, even when the actually executed script (scriptCode in BIP143) is correct. This means it’s possible to compactly prove to a hardware wallet what (unused) execution paths existed. Moreover, committing to all spent scriptPubKeys helps offline signing devices to determine the subset that belong to its own wallet. This is useful in automated coinjoins..
  3. If the SIGHASH_ANYONECANPAY flag is not set, the message commits to the amounts of all transaction inputs.Why does the signature message commit to the amounts of all transaction inputs? This eliminates the possibility to lie to offline signing devices about the fee of a transaction.
  4. The signature message commits to all input nSequence if SIGHASH_NONE or SIGHASH_SINGLE are set (unless SIGHASH_ANYONECANPAY is set as well).Why does the signature message commit to all input nSequence if SIGHASH_SINGLE or SIGHASH_NONE are set? Because setting them already makes the message commit to the prevouts part of all transaction inputs, it is not useful to treat the nSequence any different. Moreover, this change makes nSequence consistent with the view that SIGHASH_SINGLE and SIGHASH_NONE only modify the signature message with respect to transaction outputs and not inputs.
  5. The signature message includes commitments to the taproot-specific data spend_type and annex (if present).
Taproot key path spending signature validation

A Taproot signature is a 64-byte Schnorr signature, as defined in BIP340, with the sighash byte appended in the usual Bitcoin fashion. This sighash byte is optional. If omitted, the resulting signatures are 64 bytes, and a SIGHASH_DEFAULT mode is implied.

To validate a signature sig with public key q:

Constructing and spending Taproot outputs

This section discusses how to construct and spend Taproot outputs. It only affects wallet software that chooses to implement receiving and spending, and is not consensus critical in any way.

Conceptually, every Taproot output corresponds to a combination of a single public key condition (the internal key), and zero or more general conditions encoded in scripts organized in a tree. Satisfying any of these conditions is sufficient to spend the output.

Initial steps The first step is determining what the internal key and the organization of the rest of the scripts should be. The specifics are likely application dependent, but here are some general guidelines:

If the taproot output key is an aggregate of keys, there is the possibility for a malicious party to add a script path without being noticed by the other parties. This allows to bypass the multiparty policy and to steal the coin. MuSig key aggregation does not have this issue because it already causes the internal key to be randomized.

The attack works as follows: Assume Alice and Mallory want to aggregate their keys into a taproot output key without a script path. In order to prevent key cancellation and related attacks they use MSDL-pop instead of MuSig. The MSDL-pop protocol requires all parties to provide a proof of possession of their corresponding secret key and the aggregated key is just the sum of the individual keys. After Mallory receives Alice’s key A, Mallory creates M = M0 + int(t)G where M0 is Mallory’s original key and t allows a script path spend with internal key P = A + M0 and a script that only contains Mallory’s key. Mallory sends a proof of possession of M to Alice and both parties compute output key Q = A + M = P + int(t)G. Alice will not be able to notice the script path, but Mallory can unilaterally spend any coin with output key Q.

Computing the output script Once the spending conditions are split into an internal key internal_pubkey and a binary tree whose leaves are (leaf_version, script) tuples, the output script can be computed using the Python3 algorithms below. These algorithms take advantage of helper functions from the BIP340 reference code for integer conversion, point multiplication, and tagged hashes.

First, we define taproot_tweak_pubkey for 32-byte BIP340 public key arrays. The function returns a bit indicating the tweaked public key’s Y coordinate as well as the public key byte array. The parity bit will be required for spending the output with a script path. In order to allow spending with the key path, we define taproot_tweak_seckey to compute the secret key for a tweaked public key. For any byte string h it holds that taproot_tweak_pubkey(pubkey_gen(seckey), h)[1] == pubkey_gen(taproot_tweak_seckey(seckey, h)).

Note that because tweaks are applied to 32-byte public keys, `taproot_tweak_seckey` may need to negate the secret key before applying the tweak.

def taproot_tweak_pubkey(pubkey, h):
    t = int_from_bytes(tagged_hash("TapTweak", pubkey + h))
    if t >= SECP256K1_ORDER:
        raise ValueError
    P = lift_x(int_from_bytes(pubkey))
    if P is None:
        raise ValueError
    Q = point_add(P, point_mul(G, t))
    return 0 if has_even_y(Q) else 1, bytes_from_int(x(Q))

def taproot_tweak_seckey(seckey0, h):
    seckey0 = int_from_bytes(seckey0)
    P = point_mul(G, seckey0)
    seckey = seckey0 if has_even_y(P) else SECP256K1_ORDER - seckey0
    t = int_from_bytes(tagged_hash("TapTweak", bytes_from_int(x(P)) + h))
    if t >= SECP256K1_ORDER:
        raise ValueError
    return bytes_from_int((seckey + t) % SECP256K1_ORDER)

The following function, taproot_output_script, returns a byte array with the scriptPubKey (see BIP141). ser_script refers to a function that prefixes its input with a CompactSize-encoded length.

def taproot_tree_helper(script_tree):
    if isinstance(script_tree, tuple):
        leaf_version, script = script_tree
        h = tagged_hash("TapLeaf", bytes([leaf_version]) + ser_script(script))
        return ([((leaf_version, script), bytes())], h)
    left, left_h = taproot_tree_helper(script_tree[0])
    right, right_h = taproot_tree_helper(script_tree[1])
    ret = [(l, c + right_h) for l, c in left] + [(l, c + left_h) for l, c in right]
    if right_h < left_h:
        left_h, right_h = right_h, left_h
    return (ret, tagged_hash("TapBranch", left_h + right_h))

def taproot_output_script(internal_pubkey, script_tree):
    """Given a internal public key and a tree of scripts, compute the output script.
    script_tree is either:
     - a (leaf_version, script) tuple (leaf_version is 0xc0 for [[bip-0342.mediawiki|BIP342]] scripts)
     - a list of two elements, each with the same structure as script_tree itself
     - None
    """
    if script_tree is None:
        h = bytes()
    else:
        _, h = taproot_tree_helper(script_tree)
    _, output_pubkey = taproot_tweak_pubkey(internal_pubkey, h)
    return bytes([0x51, 0x20]) + output_pubkey

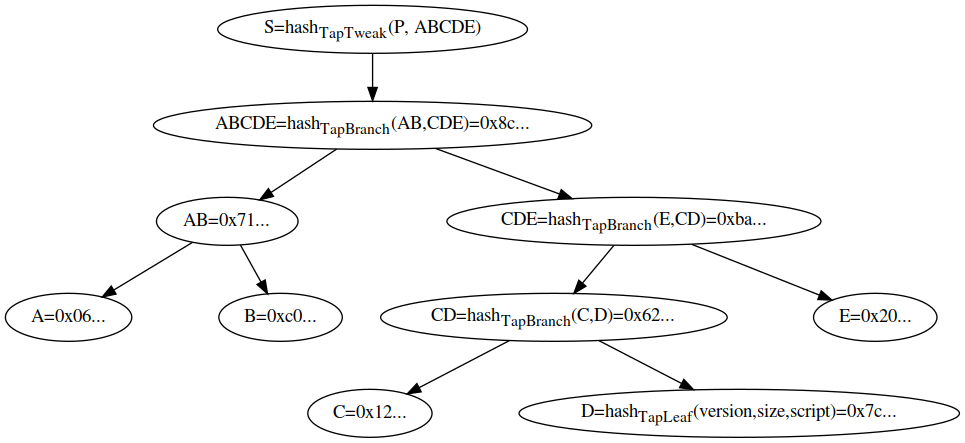

This diagram shows the hashing structure to obtain the tweak from an internal key P and a Merkle tree consisting of 5 script leaves. A, B, C and E are TapLeaf hashes similar to D and AB is a TapBranch hash. Note that when CDE is computed E is hashed first because E is less than CD.

To spend this output using script D, the control block would contain the following data in this order:

    <control byte with leaf version and parity bit> <internal key p> <C> <E> <AB>

The TapTweak would then be computed as described above like so:

D = tagged_hash("TapLeaf", bytes([leaf_version]) + ser_script(script))
CD = tagged_hash("TapBranch", C + D)
CDE = tagged_hash("TapBranch", E + CD)
ABCDE = tagged_hash("TapBranch", AB + CDE)
TapTweak = tagged_hash("TapTweak", p + ABCDE)

Spending using the key path A Taproot output can be spent with the secret key corresponding to the internal_pubkey. To do so, a witness stack consists of a single element: a BIP340 signature on the signature hash as defined above, with the secret key tweaked by the same h as in the above snippet. See the code below:

def taproot_sign_key(script_tree, internal_seckey, hash_type, bip340_aux_rand):
    if script_tree is None:
        h = bytes()
    else:
        _, h = taproot_tree_helper(script_tree)
    output_seckey = taproot_tweak_seckey(internal_seckey, h)
    sig = schnorr_sign(sighash(hash_type), output_seckey, bip340_aux_rand)
    if hash_type != 0:
        sig += bytes([hash_type])
    return [sig]

This function returns the witness stack necessary and a sighash function to compute the signature hash as defined above (for simplicity, the snippet above ignores passing information like the transaction, the input position, … to the sighashing code).

Spending using one of the scripts A Taproot output can be spent by satisfying any of the scripts used in its construction. To do so, a witness stack consisting of the script’s inputs, plus the script itself and the control block are necessary. See the code below:

def taproot_sign_script(internal_pubkey, script_tree, script_num, inputs):
    info, h = taproot_tree_helper(script_tree)
    (leaf_version, script), path = info[script_num]
    output_pubkey_y_parity, _ = taproot_tweak_pubkey(internal_pubkey, h)
    pubkey_data = bytes([output_pubkey_y_parity + leaf_version]) + internal_pubkey
    return inputs + [script, pubkey_data + path]

Security

Taproot improves the privacy of Bitcoin because instead of revealing all possible conditions for spending an output, only the satisfied spending condition has to be published. Ideally, outputs are spent using the key path which prevents observers from learning the spending conditions of a coin. A key path spend could be a “normal” payment from a single- or multi-signature wallet or the cooperative settlement of hidden multiparty contract.

A script path spend leaks that there is a script path and that the key path was not applicable - for example because the involved parties failed to reach agreement. Moreover, the depth of a script in the Merkle root leaks information including the minimum depth of the tree, which suggests specific wallet software that created the output and helps clustering. Therefore, the privacy of script spends can be improved by deviating from the optimal tree determined by the probability distribution over the leaves.

Just like other existing output types, taproot outputs should never reuse keys, for privacy reasons. This does not only apply to the particular leaf that was used to spend an output but to all leaves committed to in the output. If leaves were reused, it could happen that spending a different output would reuse the same Merkle branches in the Merkle proof. Using fresh keys implies that taproot output construction does not need to take special measures to randomizing leaf positions because they are already randomized due to the branch-sorting Merkle tree construction used in taproot. This does not avoid leaking information through the leaf depth and therefore only applies to balanced (sub-) trees. In addition, every leaf should have a set of keys distinct from every other leaf. The reason for this is to increase leaf entropy and prevent an observer from learning an undisclosed script using brute-force search.

Test vectors

Test vectors for wallet operation (scriptPubKey computation, key path spending, control block construction) can be found here. It consists of two sets of vectors.

Validation test vectors used in the Bitcoin Core unit test framework can be found here.

Rationale

Deployment

This BIP is deployed concurrently with BIP342.

For Bitcoin signet, these BIPs are always active.

For Bitcoin mainnet and testnet3, these BIPs are deployed by “version bits” with the name “taproot” and bit 2, using BIP9 modified to use a lower threshold, with an additional min_activation_height parameter and replacing the state transition logic for the DEFINED, STARTED and LOCKED_IN states as follows:

   case DEFINED:
       if (GetMedianTimePast(block.parent) >= starttime) {
           return STARTED;
       }
       return DEFINED;

   case STARTED:
       int count = 0;
       walk = block;
       for (i = 0; i < 2016; i++) {
           walk = walk.parent;
           if ((walk.nVersion & 0xE0000000) == 0x20000000 && ((walk.nVersion >> bit) & 1) == 1) {
               count++;
           }
       }
       if (count >= threshold) {
           return LOCKED_IN;
       } else if (GetMedianTimePast(block.parent) >= timeout) {
           return FAILED;
       }
       return STARTED;

   case LOCKED_IN:
       if (block.nHeight < min_activation_height) {
           return LOCKED_IN;
       }
       return ACTIVE;

For Bitcoin mainnet, the starttime is epoch timestamp 1619222400 (midnight 24 April 2021 UTC), timeout is epoch timestamp 1628640000 (midnight 11 August 2021 UTC), the threshold is 1815 blocks (90%) instead of 1916 blocks (95%), and the min_activation_height is block 709632. The deployment did activate at height 709632 on Bitcoin mainnet.

For Bitcoin testnet3, the starttime is epoch timestamp 1619222400 (midnight 24 April 2021 UTC), timeout is epoch timestamp 1628640000 (midnight 11 August 2021 UTC), the threshold is 1512 blocks (75%), and the min_activation_height is block 0. The deployment did activate at height 2011968 on Bitcoin testnet3.

Backwards compatibility

As a soft fork, older software will continue to operate without modification. Non-upgraded nodes, however, will consider all SegWit version 1 witness programs as anyone-can-spend scripts. They are strongly encouraged to upgrade in order to fully validate the new programs.

Non-upgraded wallets can receive and send bitcoin from non-upgraded and upgraded wallets using SegWit version 0 programs, traditional pay-to-pubkey-hash, etc. Depending on the implementation non-upgraded wallets may be able to send to Segwit version 1 programs if they support sending to BIP350 Bech32m addresses.

Acknowledgements

This document is the result of discussions around script and signature improvements with many people, and had direct contributions from Greg Maxwell and others. It further builds on top of earlier published proposals such as Taproot by Greg Maxwell, and Merkle branch constructions by Russell O’Connor, Johnson Lau, and Mark Friedenbach.

The authors wish the thank Arik Sosman for suggesting to sort Merkle node children before hashes, removing the need to transfer the position in the tree, as well as all those who provided valuable feedback and reviews, including the participants of the structured reviews.
